Sale!

Network-cable-clamp-pliers-stripping-Crimping-pliers-Professional-Network-Cable-Tester-RJ45-RJ11-RJ12-CAT5-UTP

Network-cable-clamp-pliers-stripping-Crimping-pliers-Professional-Network-Cable-Tester-RJ45-RJ11-RJ12-CAT5-UTP-1

Network cable clamp pliers stripping Crimping pliers/Professional Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP LAN Cable Tester

Name: Network cable clamp pliers stripping Crimping pliers/Professional Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP LAN Cable Tester
SKU: 919
Availability: InStock

Price range: $9.46 through $17.61

Color

Clear

SKU: N/A Category: New Products

Description
Reviews (0)

Network cable clamp pliers stripping Crimping pliers+Professional Network Cable Tester RJ45 RJ11 RJ12 CAT5 UTP LAN Cable Tester

Product Description:

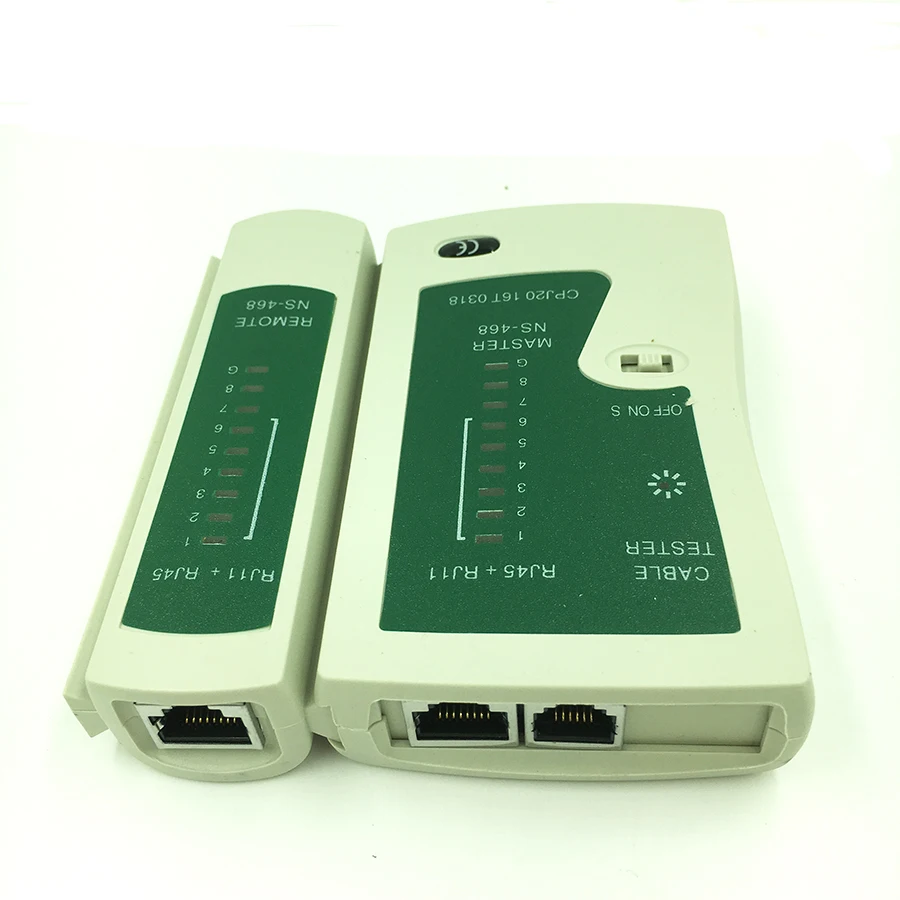

1.Network Cable Tester

Test of double-twisted cables: Switch on the power. (S is slow automatic grade. Mis manual.) Put cables into both main tester and remote tester. The lights of the main tester will turn on sequently form 1 to G.

Main tester: 1-2-3-4-5-6-7-8-G

Remote tester: 1-2-3-4-5-6-7-8-G RJ45

1-2-3-4-5-6 RJ11

Following are abnormal connections:

If one cable. for example cable NO.3 is open circuited. the two NO.3 lights of the main tseter and remote tester will not turn on.

If several cables are not connected. several lights will not turn on respectively. If less than two cables are conntected. none of the lights is on.

If two ends of a cable is disordered. for example NO. 2and NO. 4. then displays on:

Main tester: 1-2-3-4-5-6-7-8-G

Remote tester: 1-4-3-2-5-6-7-8-G

If two cables are short circuited. neither of the corresponding lights is on of the remote tester while main tester remains unchanged. If three cables. including three. are short circuited. none of the corresponding liaghts is on.

If test patch panels or wall plate outlels. two cables which can match each other (RJ45) will be connected to the tester.

If test cables of the same axes. BNC turns on when the cable works.

9V reduplicated battery is used in this tester. Battery is advised to change if any weak light oppears.( Battery is not included.)

Colour: white

Main tseter

Size: 105*67*28mm

Weight: 74g

Remote tester

Size: 105*38*28mm

Weight: 47

Package size: 185*113*34mm

Package weight: 175g

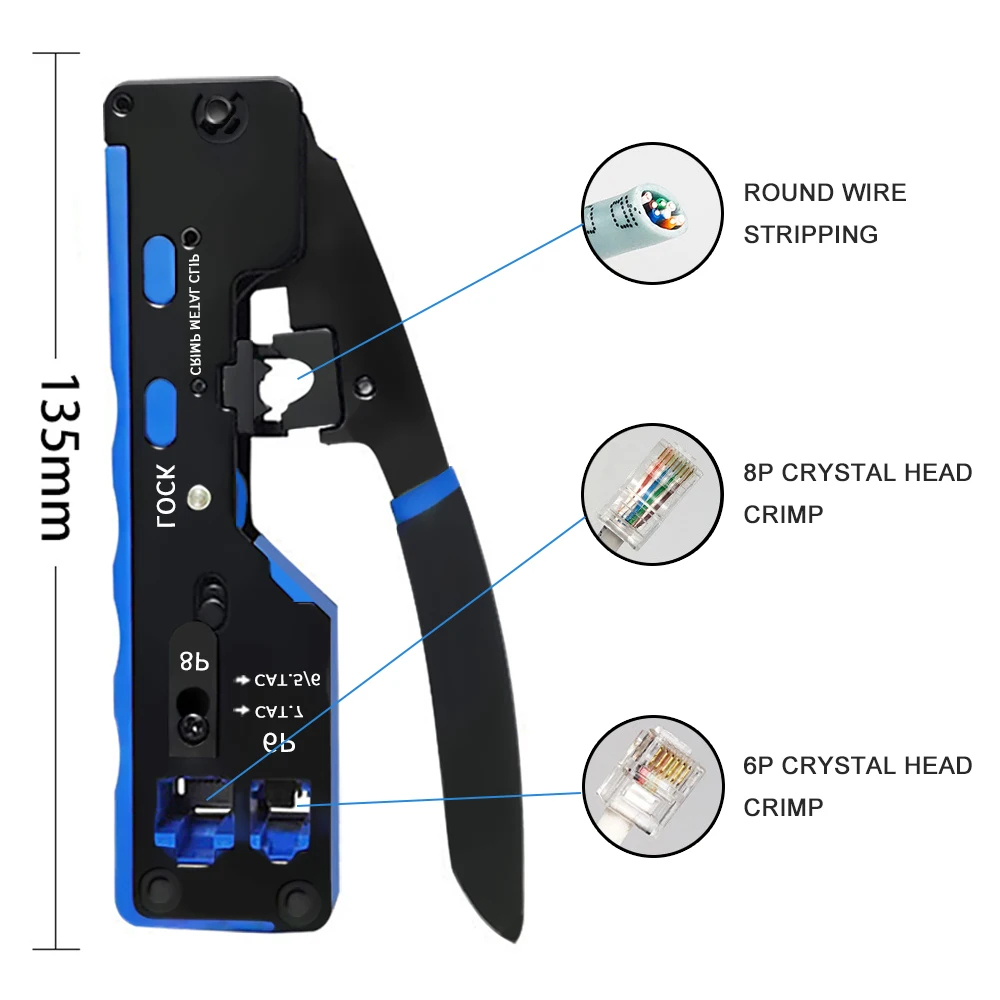

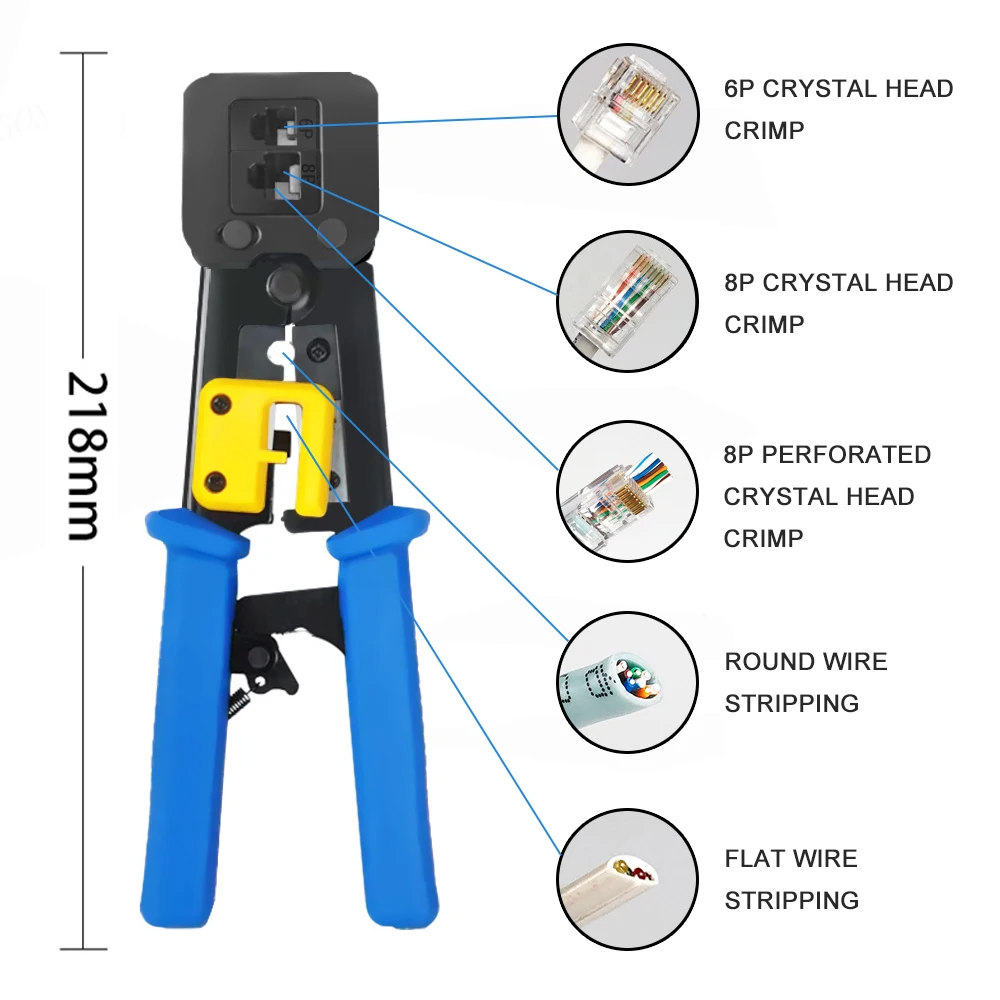

2.Network cable clamp pliers

Portable style with perfect shape
It won’t damage the shelled-wire and works with high efficiency
The mouth of the press-pliers is made of magnanic steel .which is hard and durable
While using press-pliers.just insert the cystal top into its position and press it.
For 4.6.8poles mudular connection

Specifications:
Net weight: 335g
Unit Dimension: 195*70mm
Packing Dimension: 260*130mm

set 1 Package include:

Network Cable Tester X 1PCS

Network cable clamp pliers X1set( 2pcs)

Leather case X1PCS

Crystal Head X10PCS

Crystal head for network cable X10 PCS(FREE GIFT)

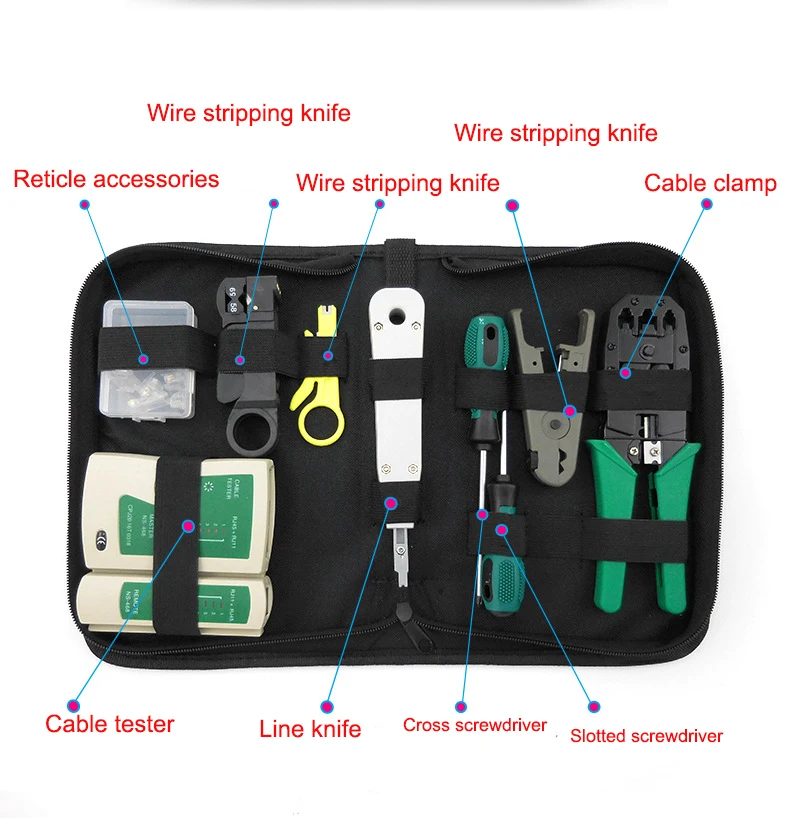

set 2 Package include:

As shown in the picture.The color of the screwdriver is red. or green. sent randomly. please understand

Detailed Images:

Upgrade model 1

Upgrade model 2
