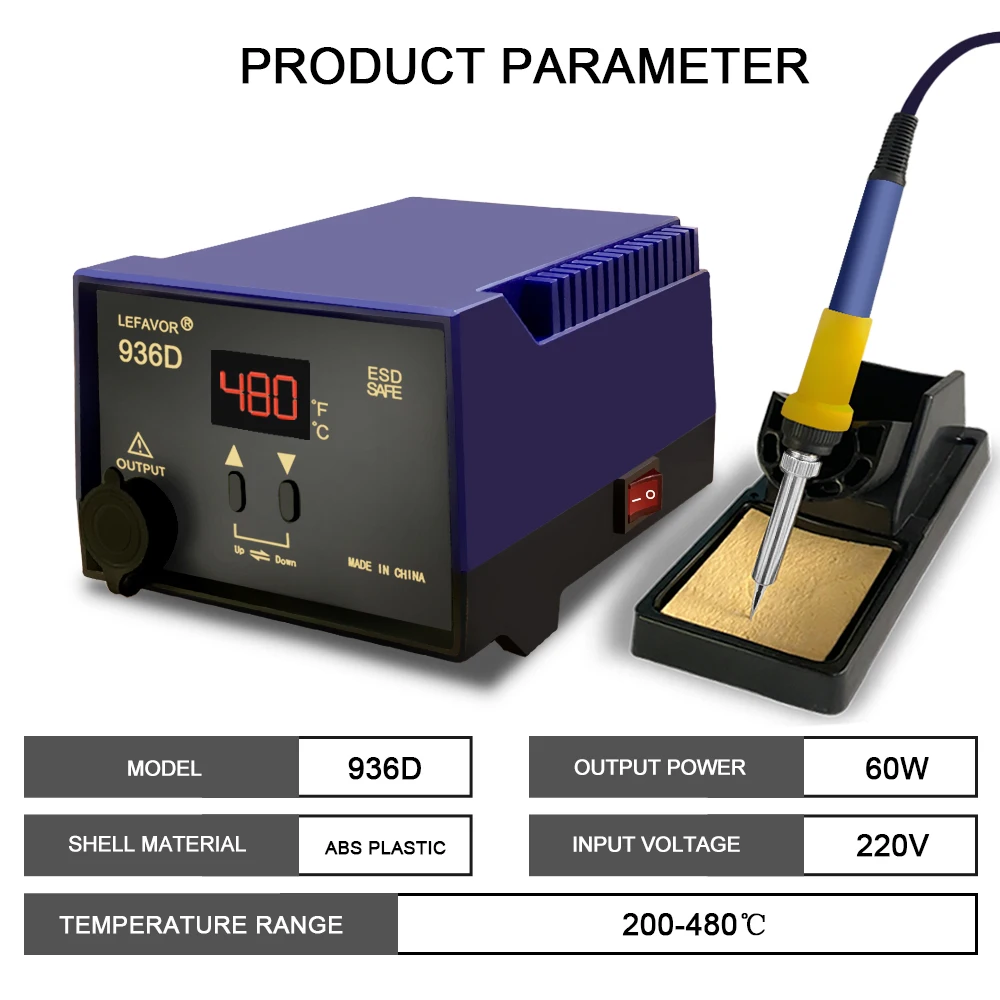

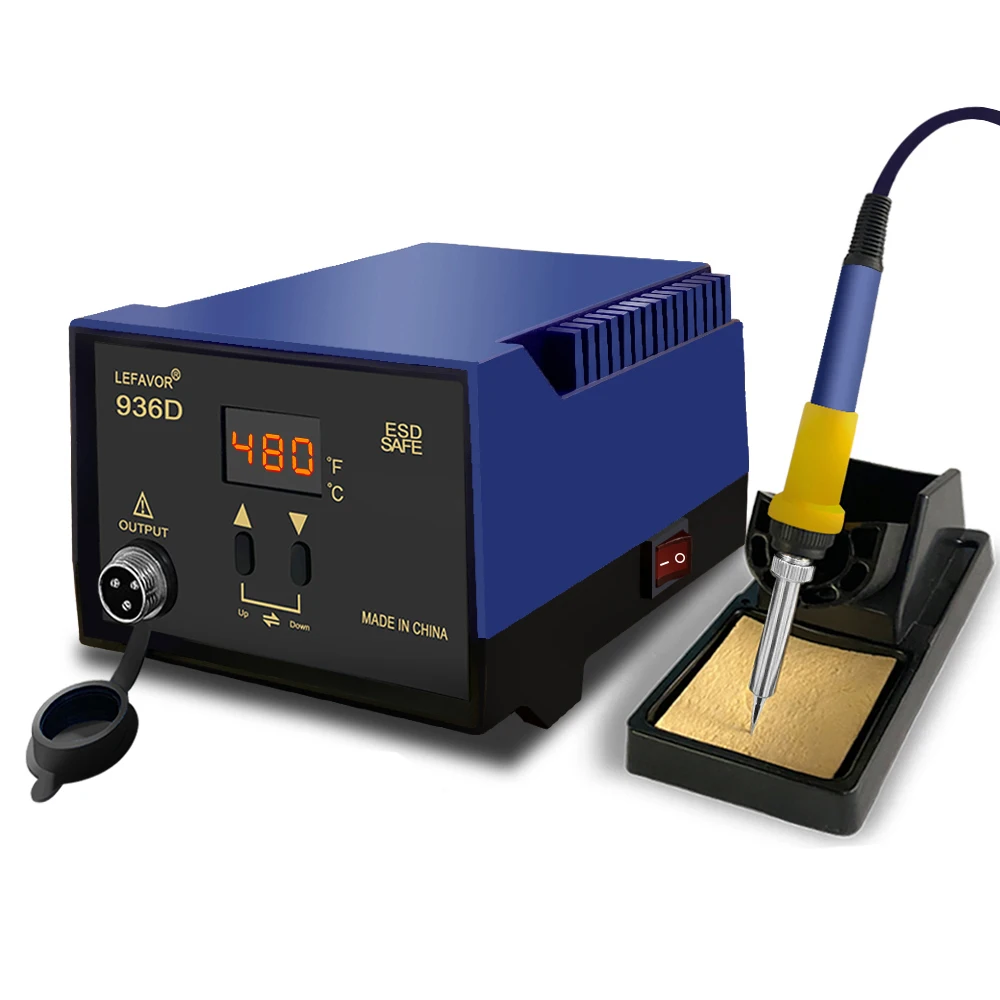

Model: 936D
-
Temperature range: 200-480 C
-
Power: 60W
-
Heating core: ceramic core
-
Noise: less than 45DB
-
Voltage: 100-240V
-
Heating core voltage: 110/220V
-
Heating rate: 3-5S
936A parameters
model:936H
Specification: Power:60W
Adjustable temperature: 356F to 896FF/180℃-480℃
Temperature stability:±2°F/±1℃
Voltage:AC90-110V60HZ/220V- 240 VAC.50 Hz Main characteristic:
ESD Security
widespread use environment digital LED display
PID temperature control rapid heating
Sleep patterns and wake-up sleep
Sleep state: When not in use. place the soldering iron stand into the stand. If not touched for 15 minutes. it will enter sleep state and automatically cool down to 180 degrees Celsius.
℃/F conversion function
digital temperature correction

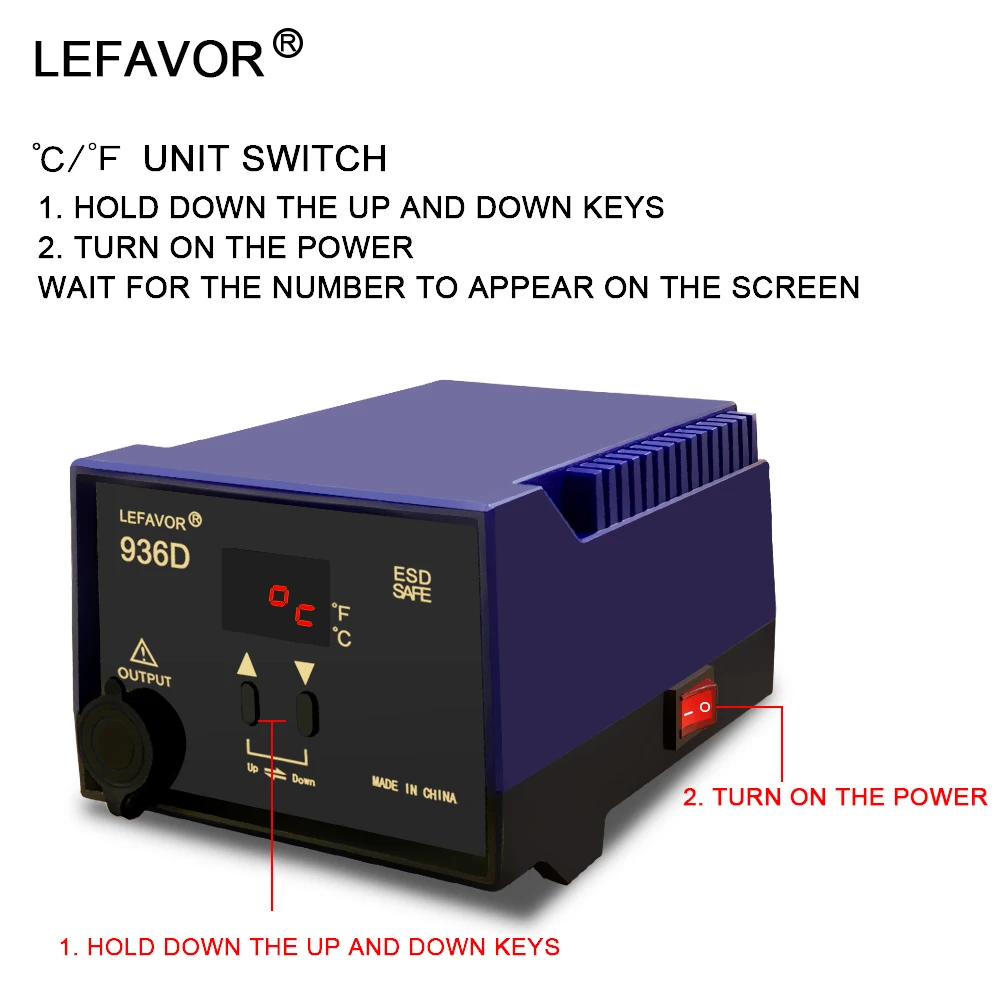

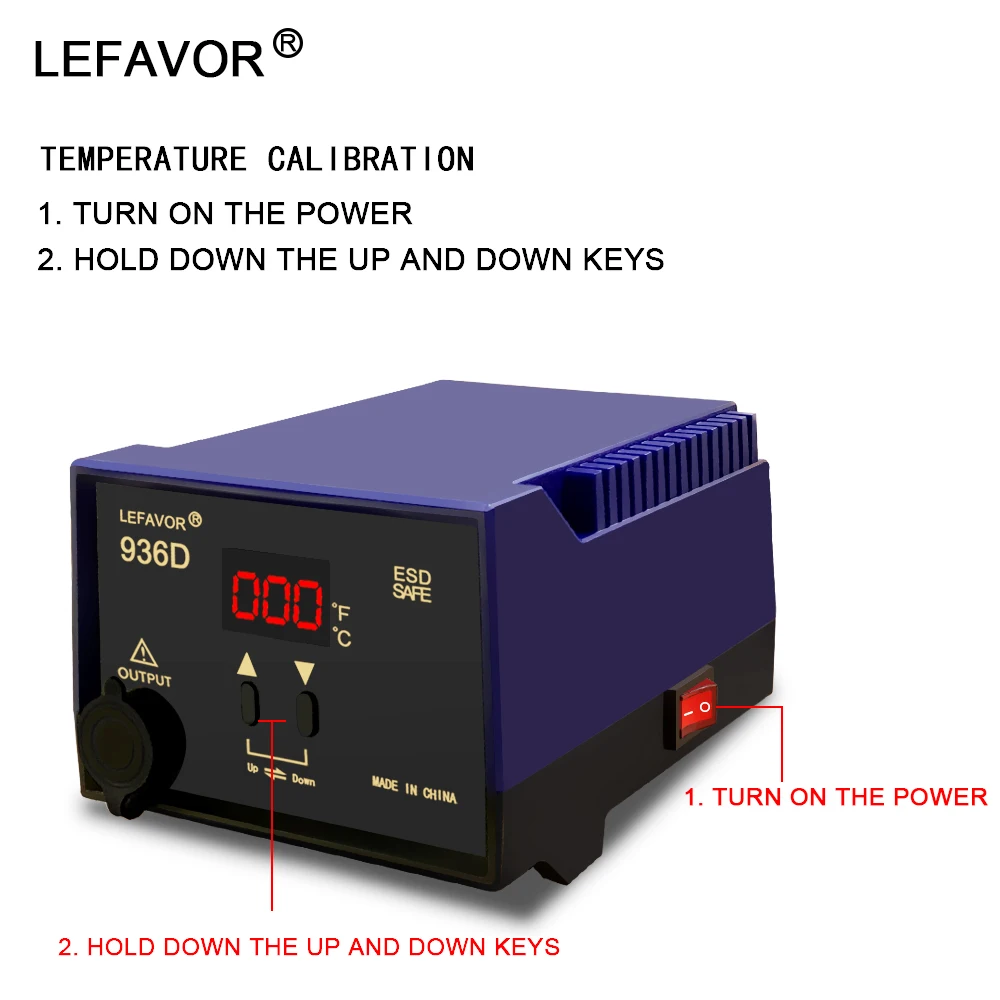

For assembly use: Install the welding roller holder on the left side of the main body of the welding table. Screw the holder through the holder from left to right with a Phillips screwdriver into the small hole of the welding table housing. Tighten. Remove the support shaft and attach the tin reel. Plug in the power supply. There are three operation buttons. “Down*. “UP”. “Setup”. and press”Setup” for 3s to turn on. Press “Setup” for 3s to turn off.Press the “Down” and “UP” keys simultaneously to switch degrees Fahrenheit. Click Setup to enter the temperature compensation settings. click Setup again. or3s inoperative to determine the temperature compensation value and exit the temperature compensation settings. When the preparations are ready. wait until the temperature of the welding pen is constant before normal use.
Note: Please do not touch the welding pen at work with the plastic shell of the welding table. otherwise the shell will melt and the wiring will be shorted!Minors and beginners should use it carefully.
